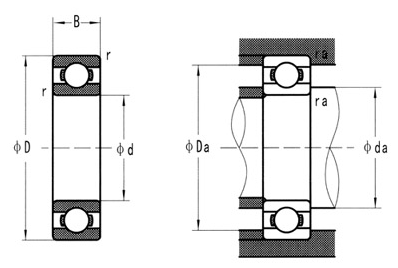

?開式軸承	尺寸				參考重量 (kg)
軸承編號	內徑	外徑	高度	斜切角	軸承材質
軸承編號	d	D	B	r(min)	ZrO2	Si3N4	Plastic	440C
683	3	7	2	0.1	0.00024?	0.00013?	0.00005?	0.00032?
693		8	3	0.15	0.00050?	0.00025?	0.00010?	0.00061?
603		9	3	0.15	0.00070?	0.00040?	0.00020?	0.00087?
623		10	4	0.15	0.00130?	0.00070?	0.00030?	0.00165?
633		13	5	0.15	0.00250?	0.00140?	0.00060?	0.00340?
684	4	9	2.5	0.1	0.00050?	0.00030?	0.00010?	0.00060?
694		11	4	0.15	0.00130?	0.00070?	0.00030?	0.00170?
604		12	4	0.2	0.00170?	0.00090?	0.00040?	0.00230?
624		13	5	0.2	0.00230?	0.00130?	0.00060?	0.00300?
634		16	5	0.3	0.00400?	0.00220?	0.00100?	0.00520?
685	5	11	3	0.15	0.00090?	0.00050?	0.00020?	0.00120?
695		13	4	0.2	0.00190?	0.00100?	0.00050?	0.00250?
605		14	5	0.2	0.00270?	0.00150?	0.00070?	0.00350?
625		16	5	0.3	0.00380?	0.00210?	0.00100?	0.00500?
635		19	6	0.3	0.00660?	0.00360?	0.00160?	0.00860?
686	6	13	3.5	0.15	0.00150?	0.00080?	0.00040?	0.00190?
696		15	5	0.2	0.00300?	0.00160?	0.00070?	0.00390?
606		17	6	0.3	0.00460?	0.00250?	0.00110?	0.00600?
626		19	6	0.3	0.00630?	0.00340?	0.00160?	0.00860?
636		22	7	0.3	0.01080?	0.00580?	0.00270?	0.01400?
687	7	14	3.5	0.15	0.00170?	0.00090?	0.00040?	0.00220?
697		17	5	0.3	0.00400?	0.00220?	0.00100?	0.00530?
607		19	6	0.3	0.00590?	0.00320?	0.00150?	0.00770?
627		22	7	0.3	0.00980?	0.00530?	0.00240?	0.01270?
637		26	9	0.3	0.01850?	0.01000?	0.00460?	0.02400?
688	8	16	4	0.2	0.00250?	0.00140?	0.00060?	0.00720?
698		19	6	0.3	0.00560?	0.00300?	0.00140?	0.00720?
608		22	7	0.3	0.00930?	0.00500?	0.00230?	0.01200?
628		24	8	0.3	0.01300?	0.00720?	0.00330?	0.01700?
638		28	9	0.3	0.02200?	0.01200?	0.00540?	0.02800?
689	9	17	4	0.2	0.00270?	0.00150?	0.00070?	0.00350?
699		20	6	0.3	0.00650?	0.00350?	0.00160?	0.00850?
609		24	7	0.3	0.01100?	0.00600?	0.00280?	0.01500?
629		26	8	0.3	0.01500?	0.00810?	0.00380?	0.02000?
639		30	10	0.6	0.02800?	0.01500?	0.00700?	0.03700?
6800	10	19	5	0.3	0.00400?	0.00210?	0.00100?	0.00500?
6900		22	6	0.3	0.00700?	0.00380?	0.00170?	0.00900?
6000		26	8	0.3	0.01400?	0.00750?	0.00350?	0.01800?
6200		30	9	0.6	0.02500?	0.01300?	0.00600?	0.03200?
6300		35	11	0.6	0.04000?	0.02200?	0.01000?	0.05200?
6801	12	21	5	0.3	0.00500?	0.00250?	0.00120?	0.00600?
6901		24	6	0.3	0.00800?	0.00420?	0.00190?	0.01000?
16001		28	7	0.3	0.01500?	0.00790?	0.00400?	0.01900?
6001		28	8	0.3	0.01700?	0.00920?	0.00400?	0.01900?
6201		32	10	0.6	0.02800?	0.01500?	0.00700?	0.03700?
6301		37	12	1	0.04600?	0.02500?	0.00400?	0.02200?
6802	15	24	5	0.3	0.00500?	0.00290?	0.00130?	0.00700?
6902		28	7	0.3	0.01200?	0.00630?	0.00300?	0.00500?
16002		32	8	0.3	0.02100?	0.01100?	0.00500?	0.02700?
6002		32	9	0.3	0.02400?	0.01300?	0.00600?	0.03100?
6202		35	11	0.6	0.03500?	0.01900?	0.00900?	0.04500?
6302		42	13	1	0.06400?	0.03500?	0.01600?	0.08300?
6803	17	26	5	0.3	0.00500?	0.00290?	0.00130?	0.00700?
6903		30	7	0.3	0.01300?	0.00710?	0.00330?	0.01700?
16003		35	8	0.3	0.02500?	0.01400?	0.00600?	0.03300?
6003		35	10	0.3	0.03200?	0.01700?	0.00800?	0.04100?
6203		40	12	0.6	0.05200?	0.02800?	0.01300?	0.06700?
6303		47	14	1	0.08700?	0.04700?	0.02200?	0.11000?
6403		62	17	1.1	0.21000?	0.11000?	0.05200?	0.27000?
6804	20	32	7	0.3	0.01300?	0.00700?	0.00300?	0.01700?
6904		37	9	0.3	0.02800?	0.01500?	0.05700?	0.03700?
16004		42	8	0.3	0.03700?	0.02000?	0.00900?	0.04800?
6004		42	12	0.6	0.05200?	0.02800?	0.01300?	0.06800?
6204		47	14	1	0.08200?	0.04500?	0.02100?	0.11000?
6304		52	15	1.1	0.11000?	0.06000?	0.02800?	0.15000?
6404		72	19	1.1	0.31000?	0.17000?	0.08000?	0.40000?
6805	25	37	7	0.3	0.01600?	0.00900?	0.00400?	0.02100?
6905		42	9	0.3	0.03200?	0.01800?	0.01000?	0.04200?
16005		47	8	0.3	0.04500?	0.02500?	0.01100?	0.05900?
6005		47	12	0.6	0.06100?	0.03300?	0.01500?	0.07900?
6205		52	15	1	0.09900?	0.05400?	0.02500?	0.13000?
6305		62	17	1.1	0.18000?	0.09800?	0.04500?	0.24000?
6405		80	21	1.5	0.41000?	0.22000?	0.10200?	0.53000?
6806	30	42	7	0.3	0.01800?	0.01000?	0.00500?	0.02400?
6906		47	9	0.3	0.04000?	0.02200?	0.01000?	0.05200?
16006		55	9	0.3	0.06700?	0.03600?	0.01700?	0.08700?
6006		55	13	1	0.08900?	0.04800?	0.02200?	0.11600?
6206		62	16	1	0.15000?	0.08300?	0.03800?	0.20000?
6306		72	19	1.1	0.27000?	0.14000?	0.06600?	0.35000?
6406		90	23	1.5	0.57000?	0.31000?	0.14000?	0.74000?
6807	35	47	7	0.3	0.02100?	0.01100?	0.00500?	0.02700?
6907		55	10	0.6	0.05800?	0.03100?	0.01400?	0.07500?
16007		62	9	0.3	0.08200?	0.04500?	0.02100?	0.11000?
6007		62	14	1	0.12000?	0.06300?	0.02900?	0.15000?
6207		72	17	1.1	0.22000?	0.12000?	0.05500?	0.28000?
6307		80	21	1.5	0.36000?	0.19000?	0.08900?	0.46000?
6407		100	25	1.5	0.73000?	0.40000?	0.18000?	0.95000?
6808	40	52	7	0.3	0.02000?	0.01300?	0.00600?	0.03000?
6908		62	12	0.6	0.09000?	0.05000?	0.02200?	0.11000?
16008		68	9	0.3	0.10000?	0.05000?	0.02500?	0.13000?
6008		68	15	1	0.15000?	0.08000?	0.03700?	0.19000?
6208		80	18	1.1	0.28000?	0.15000?	0.07000?	0.37000?
6308		90	23	1.5	0.49000?	0.27000?	0.12000?	0.64000?
6408		110	27	2	0.94600?	0.51300?	0.24000?	1.23000?
6809	45	58	7	0.3	0.02900?	0.01600?	0.00700?	0.03800?
6909		68	12	0.6	0.09700?	0.05300?	0.02400?	0.13000?
16009		75	10	0.6	0.13000?	0.07000?	0.03200?	0.17000?
6009		75	16	1	0.19000?	0.10000?	0.04600?	0.24000?
6209		85	19	1.1	0.32000?	0.17500?	0.08100?	0.42000?
6309		100	25	1.5	0.64000?	0.34500?	0.16000?	0.83000?
6409		120	29	2	1.18000?	0.64000?	0.29000?	1.53000?
6810	50	65	7	0.3	0.03800?	0.02100?	0.01000?	0.05000?
6910		72	12	0.6	0.10000?	0.06000?	0.02600?	0.14000?
16010		80	10	0.6	0.13000?	0.07000?	0.03400?	0.18000?
6010		80	16	1	0.20000?	0.11000?	0.05000?	0.26000?
6210		90	20	1.1	0.35000?	0.19000?	0.08800?	0.46000?
6310		110	27	2	0.82000?	0.44000?	0.20000?	1.06000?
6410		130	31	2.1	1.45000?	0.78000?	0.36000?	1.88000?
6811	55	72	9	0.3	0.06000?	0.03000?	0.01600?	0.08000?
6911		80	13	1	0.15000?	0.08000?	0.03600?	0.19000?
16011		90	11	0.6	0.20000?	0.11000?	0.04900?	0.26000?
6011		90	18	1.1	0.29000?	0.16000?	0.07300?	0.38000?
6211		100	21	1.5	0.48000?	0.26000?	0.12000?	0.62000?
6311		120	29	2	1.05000?	0.57000?	0.26000?	1.37000?
6411		140	33	2.1	1.76000?	0.95000?	0.44000?	2.29000?
6812	60	78	10	0.3	0.08000?	0.04000?	0.02000?	0.10000?
6912		85	13	1	0.15000?	0.08000?	0.03700?	0.19000?
16012		95	11	0.6	0.22000?	0.12000?	0.05400?	0.28000?
6012		95	18	1.1	0.32000?	0.17000?	0.07900?	0.41000?
6212		110	22	1.5	0.60000?	0.33000?	0.15000?	0.78000?
6312		130	31	2.1	1.32000?	0.72000?	0.33000?	1.72000?
6412		150	35	2.1	2.13000?	1.15000?	0.53000?	2.77000?
6813	65	85	10	0.6	0.10000?	0.05000?	0.02500?	0.13000?
6913		90	13	1	0.17000?	0.09000?	0.04000?	0.22000?
16013		100	11	0.6	0.23000?	0.13000?	0.06000?	0.30000?
6013		100	18	1.1	0.34000?	0.18000?	0.08000?	0.44000?
6213		120	23	1.5	0.77000?	0.42000?	0.19000?	1.00000?
6313		140	33	2.1	1.62000?	0.88000?	0.41000?	2.11000?
6413		160	37	2.1	2.54000?	1.35000?	0.60000?	3.30000?
6814	70	90	10	0.6	0.10000?	0.05600?	0.02600?	0.13000?
6914		100	16	1	0.27000?	0.15000?	0.07000?	0.35000?
16014		110	13	0.6	0.34000?	0.18000?	0.08000?	0.44000?
6014		110	20	1.1	0.47000?	0.25000?	0.12000?	0.61000?
6214		125	24	1.5	0.84000?	0.45000?	0.21000?	1.09000?
6314		150	35	2.1	1.98000?	1.07000?	0.49000?	2.57000?
6414		180	42	3	3.71000?	1.98000?	0.87000?	4.83000?
6815	75	95	10	0.6	0.11000?	0.06000?	0.02800?	0.15000?
6915		105	16	1	0.28000?	0.15000?	0.07000?	0.36000?
16015		115	13	0.6	0.36000?	0.19000?	0.08900?	0.46000?
6015		115	20	1.1	0.50000?	0.27000?	0.12000?	0.65000?
6215		130	25	1.5	0.92000?	0.50000?	0.23000?	1.19000?
6816	80	100	10	0.6	0.12000?	0.06300?	0.03000?	0.15000?
6916		110	16	1	0.30000?	0.16000?	0.07500?	0.39000?
16016		125	14	0.6	0.48000?	0.26000?	0.12000?	0.62000?
6016		125	22	1.1	0.67000?	0.36000?	0.17000?	0.87000?
6216		140	26	2	1.09000?	0.59000?	0.27000?	1.42000?
6316		170	39	2.1	2.82000?	1.51000?	0.66000?	3.67000?
6416		200	48	3	5.26000?	2.81000?	1.23000?	6.84000?
6817	85	110	13	1	0.20000?	0.11000?	0.05100?	0.26000?
6917		120	18	1.1	0.42000?	0.23000?	0.11000?	0.55000?
16017		130	14	0.6	0.50000?	0.27000?	0.13000?	0.65000?
6017		130	22	1.1	0.71000?	0.38000?	0.18000?	0.92000?
6217		150	28	2	1.35000?	0.73000?	0.34000?	1.76000?
6317		180	41	3	3.25000?	1.74000?	0.76000?	4.23000?
6818	90	115	13	1	0.21000?	0.12000?	0.05000?	0.28000?
6918		125	18	1.1	0.45000?	0.24000?	0.11000?	0.59000?
16018		140	16	1	0.67000?	0.36000?	0.17000?	0.87000?
6018		140	24	1.5	0.92000?	0.50000?	0.23000?	1.19000?
6218		160	30	2	1.65000?	0.88000?	0.39000?	2.15000?
6318		190	43	3	3.78000?	2.01000?	0.88000?	4.91000?
6819	95	120	13	1	0.23000?	0.12000?	0.05700?	0.30000?
6919		130	18	1.1	0.46000?	0.25000?	0.12000?	0.60000?
16019		145	16	1	0.70000?	0.38000?	0.17000?	0.90000?
6019		145	24	1.5	0.95000?	0.51000?	0.24000?	1.23000?
6219		170	32	2.1	2.02000?	1.07000?	0.47000?	2.62000?
6319		200	45	3	4.36000?	2.33000?	1.02000?	5.67000?
6820	100	125	13	1	0.24000?	0.13000?	0.06000?	0.31000?
6920		140	20	1.1	0.64000?	0.35000?	0.16000?	0.83000?
16020		150	16	1	0.73000?	0.39000?	0.18000?	0.95000?
6020		150	24	1.5	0.99000?	0.54000?	0.25000?	1.29000?
6220		180	34	2.1	2.42000?	1.29000?	0.56000?	3.14000?
6320		215	47	3	5.38000?	2.87000?	1.26000?	7.00000?
6821	105	130	13	1	0.25000?	0.14000?	0.06000?	0.32000?
6921		145	20	1.1	0.66000?	0.36000?	0.16000?	0.86000?
16021		160	18	1	0.92000?	0.49000?	0.22000?	1.20000?
6021		160	26	2	1.22000?	0.65000?	0.29000?	1.59000?
6221		190	36	2.1	2.85000?	1.52000?	0.66000?	3.70000?
6321		225	49	3	6.19000?	3.30000?	1.44000?	8.05000?
6822	110	140	16	1	0.38000?	0.21000?	0.10000?	0.50000?
6922		150	20	1.1	0.69000?	0.37000?	0.17000?	0.89000?
16022		170	19	1	1.12000?	0.60000?	0.26000?	1.46000?
6022		170	28	2	1.51000?	0.80000?	0.35000?	1.96000?
6222		200	38	2.1	3.35000?	1.80000?	0.78000?	4.36000?
6322		240	50	3	7.34000?	3.91000?	1.71000?	9.54000?
6824	120	150	16	1	0.41000?	0.22000?	0.10000?	0.54000?
6924		165	22	1.1	1.08000?	0.58000?	0.25000?	1.41000?
16024		180	19	1	1.38000?	0.74000?	0.32000?	1.80000?
6204		180	28	2	1.60000?	0.85000?	0.37000?	2.07000?
6224		215	40	2.1	3.96000?	2.11000?	0.92000?	5.15000?
6324		260	55	3	9.62000?	5.13000?	2.24000?	12.50000?
6826	130	165	18	1.1	0.72000?	0.39000?	0.17000?	0.94000?
6926		180	24	1.5	1.43000?	0.76000?	0.33000?	1.86000?
16026		200	22	1.1	2.07000?	1.10000?	0.48000?	2.69000?
6206		200	33	2	2.43000?	1.30000?	0.57000?	3.16000?
6226		230	40	3	4.48000?	2.39000?	1.04000?	5.82000?
6326		280	58	4	11.60000?	6.20000?	2.71000?	15.10000?
6828	140	175	18	1.1	0.77000?	0.41000?	0.18000?	1.00000?
6928		190	24	1.5	1.52000?	0.81000?	0.36000?	1.98000?
16028		210	22	1.1	2.20000?	1.17000?	0.51000?	2.86000?
6028		210	33	2	2.73000?	1.46000?	0.64000?	3.55000?
6228		250	42	3	5.73000?	3.06000?	1.34000?	7.45000?
6328		300	62	4	14.90000?	7.96000?	3.48000?	19.40000?
6830	150	190	20	1.1	1.08000?	0.57000?	0.25000?	1.40000?
6930		210	28	2	2.35000?	1.25000?	0.55000?	3.05000?
16030		225	24	1.1	2.75000?	1.47000?	0.64000?	3.58000?
6030		225	35	2.1	3.25000?	1.73000?	0.76000?	4.22000?
6230		270	45	3	7.24000?	3.86000?	1.69000?	9.41000?
6330		320	65	4	20.15000?	10.74000?	4.70000?	26.20000?
60/22	22	44	12	0.6	0.05700?	0.03000?	0.01300?	0.07400?
62/22		50	14	1	0.09200?	0.04900?	0.02100?	0.11900?
63/22		56	16	1.1	0.13800?	0.07300?	0.03200?	0.17900?
60/28	28	52	12	0.6	0.07400?	0.03900?	0.01700?	0.09600?
62/28		58	16	1	0.13500?	0.07200?	0.03100?	0.17500?
63/28		68	18	1.1	0.22100?	0.11800?	0.05200?	0.28700?
60/32	32	58	13	1	0.09400?	0.05000?	0.02200?	0.12200?
62/32		65	17	1	0.17300?	0.09200?	0.04000?	0.22500?
63/32		75	20	1.1	0.29900?	0.16000?	0.70000?	0.38900?

網站菜單

產品搜索

語言切換

退出菜單

深溝球軸承選型表

尺寸表

聯系我們

地址：

電話：

傳真：

郵箱：

網站菜單

產品搜索

語言切換

分享網站

退出菜單

深溝球軸承選型表

尺寸表

聯系我們

地址：

電話：

傳真：

郵箱：
